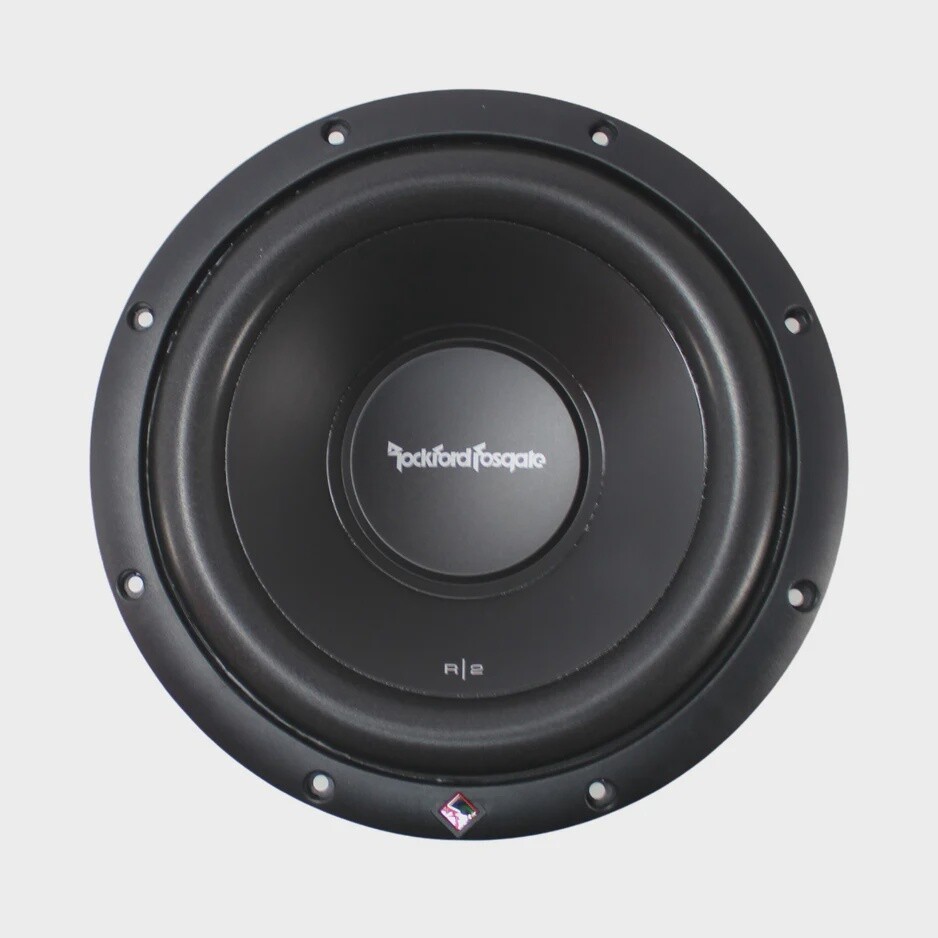

ROCKFORD FOSGATE PRIME SERIES 10" 4 OHM DUAL VC SUBWOOFER 500W PEAK RF-R2D4-10

R2D410
$112.99
Out of stock
1
Product Details
UPC: 780687332549
Brand: ROCKFORD FOSGATE
  • 12 AWG compression terminals
  • Mica injected polypropylene cone
  • Anodized aluminum voice coil former
  • Optimized for both sealed and vented enclosures
  • Dimensions: 12.5"x12.5"x6.8"

Rockford Fosgate Prime Series 10" 4 Ohm Dual VC Subwoofer 500W Peak RF-R2D4-10

Car Audio Fanatics wanting big bass can rely on the Prime R2D4-10 subwoofer. This 10†subwoofer handles 250 Watt RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting - typically reserved for more expensive models - keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.

This Listing Includes:

(1)10" 4 Ohm Dual VC Subwoofer 500W Peak

Features:

  • 12 AWG compression terminals
  • Linear spider with embedded 16 AWG tinsel leads
  • Mica injected polypropylene cone
  • Anodized aluminum voice coil former
  • Optimized for both sealed and vented enclosures
  • StampCast basket with integrated spider venting
  • Integrated PVC trim ring

Specifications:

  • Magnet Weight (oz): 43 oz
  • Size: 10"
  • Voice Coil Diameter: 2"
  • Nominal Impedance: Dual 4-Ohm
  • Speaker Connector: Dual 12 AWG compression
  • Mounting Depth: 4.319 in
  • Shipping Weight: 8.8 Lbs
  • Qts: 0.47
  • Qms: 6.93
  • Qes: 0.50
  • Vas (Liters): 39
  • Le (mH): 3.9
  • Power Handling (Watts RMS): 250 Watts RMS - 500 Watts Max
  • SPL (dB @ 1w/1m): 86.9
  • Fs (Hz): 34.6
  • Xmax (mm): 6.5
  • Cutout Diameter: 9.125 in
  • Woofer Displacement: 0.039 cu. ft.
  • CEA-2031 Compliant: Yes
  • Re (Ohms): 3.84
  • Sd (cm2): 339.8
  • Subwoofer Type: Standard
  • Voice Coil Type: Dual Voice Coil
  • Sealed Box Volume (Vb): 0.59 cu. ft.
  • Vented Box Volume (Vb): 1.4 cu. ft.



Dimensions:

  • 12.5"x12.5"x6.8"
