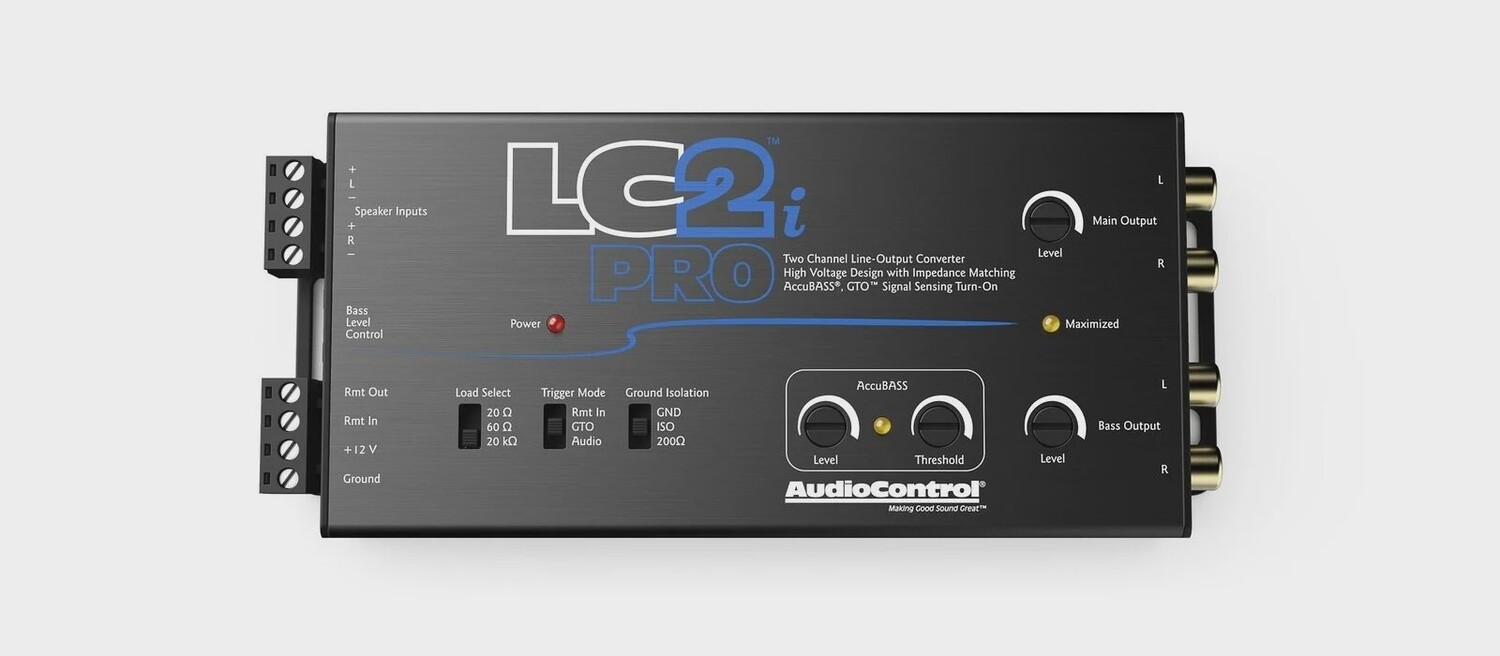

AUDIOCONTROL 2 CHANNEL LINE OUTPUT CONVERTER W/ ACCUBASS & ACR-1 REMOTE LC2I PRO

LC2IPRO
$173.75
In stock
1
Product Details
UPC: 851523007782
Brand: AUDIOCONTROL

The LC2i PRO join ranks with AudioControl's most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC2i PRO will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO Signal Sense (DC offset), audio sense, or remote 12 volt inputs. Compensate for factory bass roll-off with AudioContol's patented AccuBASS and control your sub with the included ACR-1 level control.

This Listing Includes:
(1) Line Output Converter
(1) Bass Knob

Features:

  • Two channels of active speaker level inputs (up to 40V input handling)
  • Fixed and variable outputs with discrete level controls
  •  AccuBASS processing for correction of bass roll-off
  •  Load Selection Switch
  • GTOTM Signal Sensing
  • Ground Isolation Switch
  • ACR-1 dash remote included
  •  Compact design

Specifications:

  • Current Draw: 200 mA
  • Recommended Fuse Rating: 1 A
  • Inputs:
  1. Speaker Level Input: 1 (2 channels)
  2. Maximum Speaker Level Input: 40 Vrms / 400 W (20k setting)
  3. Input Impedance (selectable): 20, 60, 20k
  • Outputs
  1. Preamp Outputs: 2 (2 channels main, 2 channels bass)
  2. Maximum Output Level: 9.5Vrms/13V peak
  3. Output Gain: +/- 12 dB
  4. Output Impedance: 150


Performance

  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >110 dB
  • Frequency Response: 20 Hz - 50 kHz 1 dB
  • Control
  1. Remote In / GTO Signal Sense / Audio Sense
  2. 12VDC Remote Out (always active when unit is on)
